Gas & vent filtration

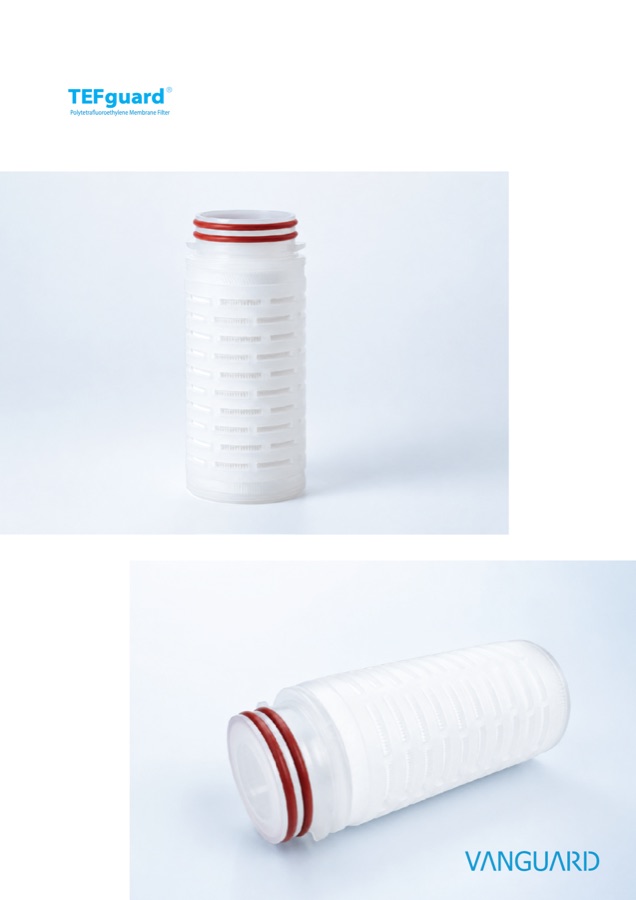

TEFguard® PTFE membrane filters
Hydrophobic PTFE membrane filter configurations developed for compatible gas and vent filtration requirements.
Product overview
TEFguard uses a hydrophobic PTFE membrane format intended for suitable gas and vent applications. Configuration selection should consider the gas composition, moisture exposure, required retention, flow, differential pressure, temperature, sterilization method and connection requirements.
Filter-size configurations
Select the nominal filter length according to the required effective filtration area and process demand.
| Nominal filter length | Effective filtration area |
|---|---|
| 5 in | 0.37 m² / 3.98 ft² |
| 10 in | 0.74 m² / 7.97 ft² |
| 20 in | 1.48 m² / 15.94 ft² |
| 30 in | 2.22 m² / 23.91 ft² |
Filtration area values are nominal. Confirm the selected configuration and current controlled specification before ordering.
Typical application discussions
- Process vessel and storage-tank venting
- Compatible compressed-air and process-gas filtration
- Moisture-resistant vent filtration
- Laboratory and production equipment venting
Technical information
| Membrane | Hydrophobic PTFE |
|---|---|
| Available lengths | 5 in, 10 in, 20 in and 30 in |
| Product format | Confirm available cartridge or capsule configuration with us |
| Retention rating | Confirm against the current approved product datasheet |
| Operating limits | Configuration-specific; request current controlled information |
| Sterilization | Confirm the approved method and cycle limits for the selected configuration |
Configuration support
Discuss your gas or vent application.
Provide the gas composition, flow, pressure, temperature, moisture conditions, sterilization method and required documentation.
